Features:
Mini Hi-Fi audio stereo motorcycle car amplifier.
Pre-professional level input operational amplifier IC for circuit design, sound, transparent, bright.
Filtering and anti-large-capacity power circuit.
MP3, iPod, CD/DVD player input jack.
Design: Car, Fun, Mini, Multifunctional, Portable.
Supports: Bluetooth, FM, Remote Control, SD Card Music Playing.
Functions: AUX Function, Noise Cancelling, Songs Track, Stereo.
Connection: Wired, Wireless.
Interface: 3.5mm Audio, Power Charge Port, SD Card Slot, USB 2.0.
Audio Source: Bluetooth Enabled Devices, Electronic Products with 3.5mm Plug, Electronic Products with USB port, SD card.
Material: Aluminum Alloy.
Power Output: 2-RMS x 20W.
Low distortion.
Controls and Buttons:
4-Electronic keypad control.
Volume on/off.
USB/FM/AUX Mode button.
V+/NEXT button.
V-/PREV button.
Play/SCN button.
Treble.
Bass.
Jack Input: Standard stereo jack.
Format: MP3/FM.
Input Voltage: DC 12V, 3A/5A.
Output Power: RMS 2 x 20W 1KHz.
FM Radio Frequency Range: 87.5 – 108MHz.
Frequency Response: 20Hz – 20kHz.
Harmonic Distortion: <0.05% 4W 1KHz.
SNR: 85dB.
High Control: 12dB +- 10KHz.
Bass Control: 12dB +- 100Hz.
The Signal Level: 220MV 47K.
Reader, U-disk Format: MP3 FM.
Material: Lightweight aluminum.
Color: Blue.
Product Weight: 263g.
Product Dimensions (L x W x H): 153 x 110 x 41mm.
12V 3A Adapter (Fit HY-502S/HY-V10/HY-V11/HY-V6/MA-130/MA-200/TA2024, Lepy LP-2020A/LP-2024A/LP-V9S/LP-V3S/LP-838, and so on).

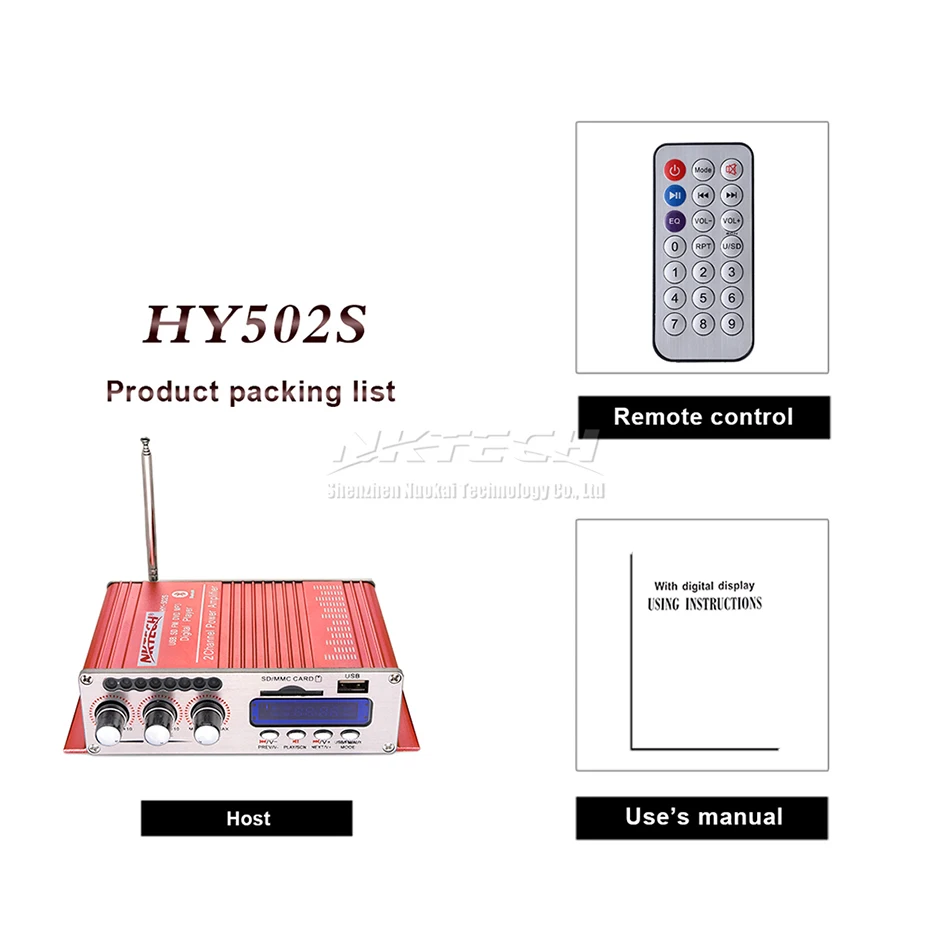

Package included:If you select Blue Without Adapter or Red Without Adapter:1 x NKTECH HY-502S Hi-Fi Digital Stereo Amplifier.
1 x English User’s Manual.
1 x Remote Controller.If you select Blue With 12V 3A or Red With 12V 3A:1 x NKTECH HY-502S Hi-Fi Digital Stereo Amplifier.

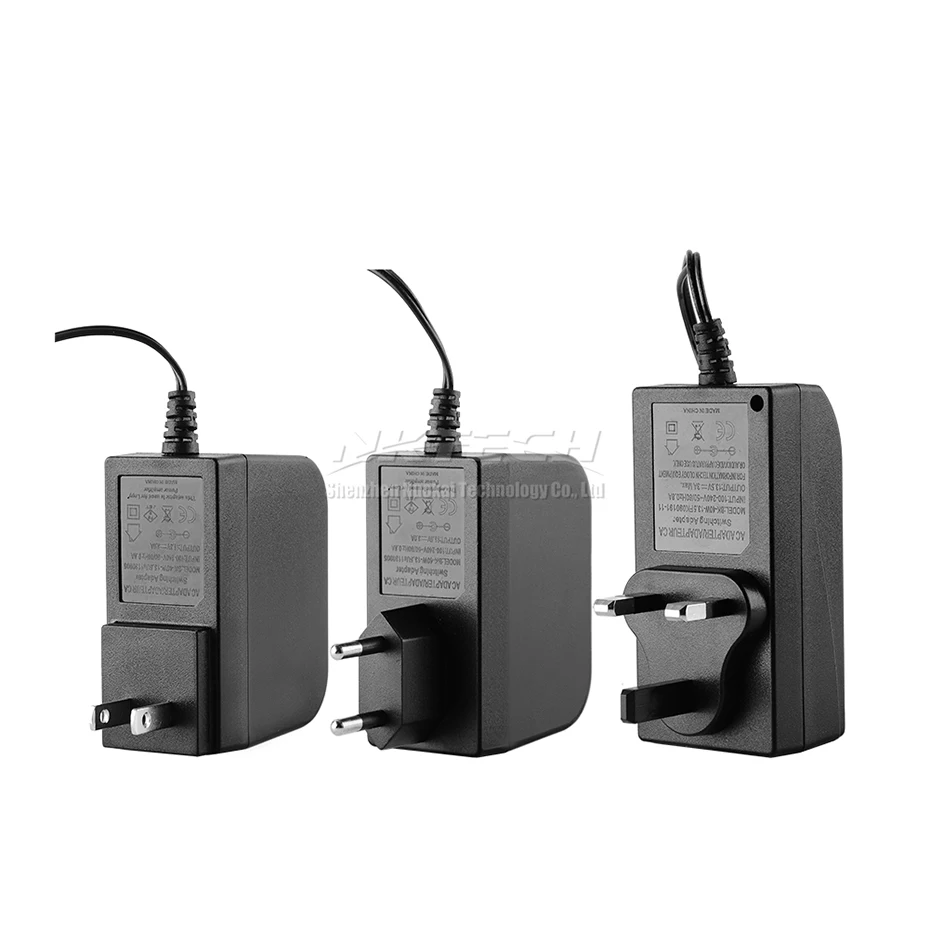

1 x NKTECH 3A Power Supply.
1 x English User’s Manual.
1 x Remote Controller.Car Power Amplifier Stereo
- This car power amplifier is a 2-channel professional amplifier, suitable for car, motorbike, boat, home use with easy installation.
- Multifunction and Convenience, support FM Raido/MP3/USB/SD MMC Card/DVD/VCD/Audio-in
- Seleted high-power four-channel professional power amplifier integrated circuits, minimal distortion strong power.
- With Bass Tuning/Treble Adjusting Button and four-mode Switching button
- Pre-professional level input operational amplifier IC for circuit design, sound, transparent, bright.
