yuan ting backup camera
YuanTing Car Front Side Rear View Reverse/Forward Camera Waterproof HD Distance Scale Lines for Auto Parking Sensor System

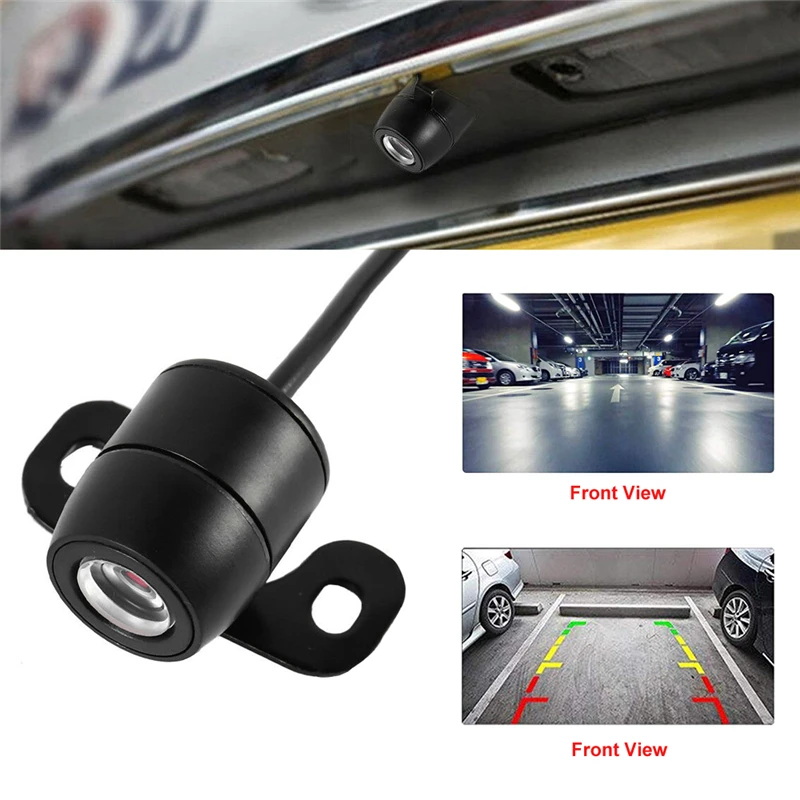

This backup/front/side view camera is easy to install of bracket mount in trunk lid handle place, license plate lamp, etc. which is almost invisible and won’t change original car style.
Furthermore, it designed with IP68 waterproof, dustproof, night vision, auto white balance. All the functions make the car rear/front/side view camera a great assistant for drivers and home security.
Setting:
1. Set the camera to your car’s license plate area
2. Adjust the camera lens to its best position.
3. Connect the power wire (red and black) to light power wires of your car.
4. Connect the video (yellow) to the display.
Specifications:
Images Sensors: 1/4CCD
Signal System: NTSC
Horizontal Resolution (TV lines): 480 TV lines
Effective Pixels: 720*480pixel
IP Rating: IP67 IP68
Video Output: 1.0Vp-p, 75 ohm
Current Consumption: 130-150 mA
AGC & BLC: Auto
S/N ratio: Better than 48dB (AGC-OFF)
Shutter speed: 1/50(1/60)-1/100,000sec Minimum Illumination: 0.1Lux/F1.2
Power Supply (DC): 12V
Operating Temperature (Deg.C): -30 to
Storage Temperature (Deg.C): -40 to

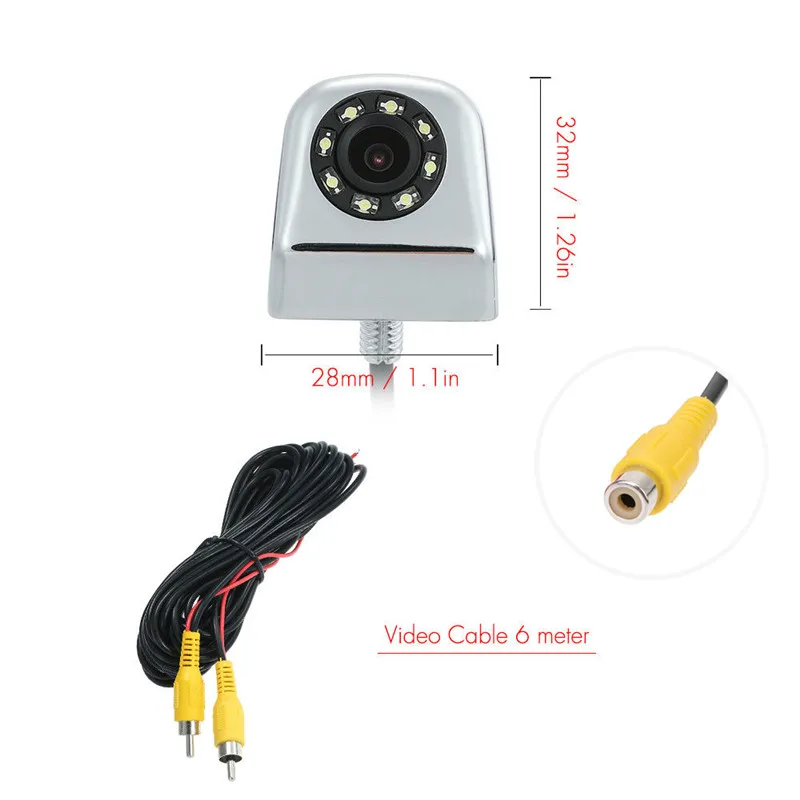

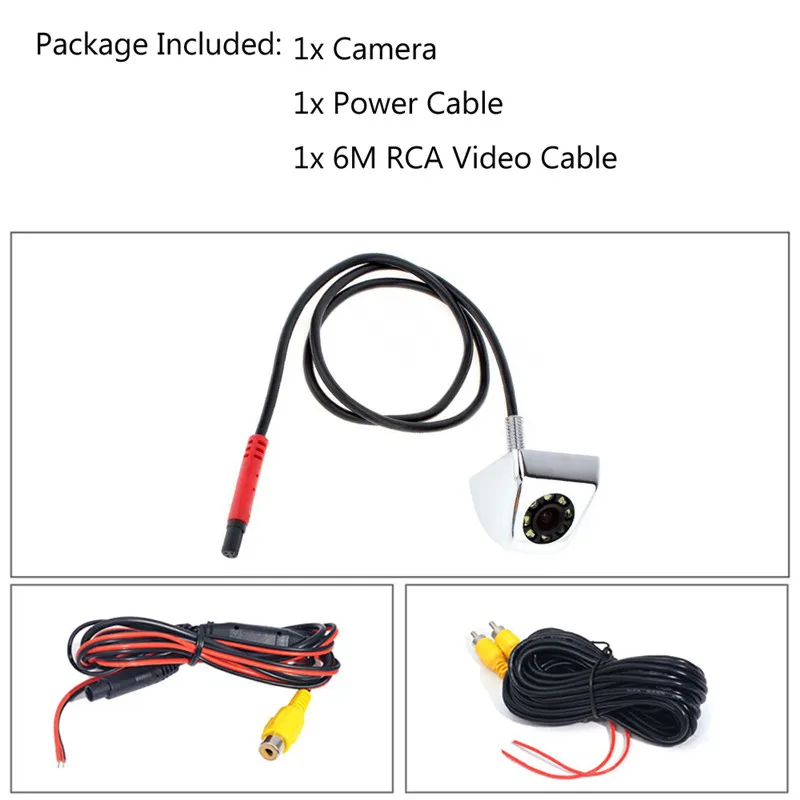

Packing Included:
1* camera
1*1m power cord
1*6m video cable
1* drill bit
1* English manual
